Quad-core processor & Windows ststem terminal
| Specifications |
| Modular | Parameter |
| MB | RK3288 quad-core processor,1.8GHz processor,HDMI slot,VGA slot,EDP slot,4K display available ,single RJ45 serial port,WIFI bluetooth single,6 serial ports,6 USB interfaces,2G memory,8G HDD. |
| Monitor | 17inch capacitive touch screen AIO,display ratio 4:3,water proof, anti-explosion,dust-proof,luminance 250cd/m2,contract ratio 1000:1,resulotion:1280×1024,screen hardness 7H,touching respond time <10ms, multidirection touch available. |
| encryption keyboard | 16 keys encryption stainless steel brushed panel,dust-proof,water-proof,anti-explosion, prevention burglary,drilling-resistant,prying-resistant etc. key buttoms life:>3 millions times. DES,TDES encryption algorithm, RSA algorithm. CE,FCC,ROHS certification approval. |
| Card reader | contact:Standard ISO7816 type A/B,1.8V；
SLE4428/4442 Card；
contact less :Standard ISO14443 Type A,S50/S70/contractless CPU/MIFARE; |
| fingerprint function | image resolution 363DPI,fingerprint display double confirm function,FRR0.08%,FAR0.00001%,acquisition time<0.4秒,image transmit 4MPixel/s. |
| WiFi modular | internal WiFi modular ,2.4G antenna accessories. |
| Audio | Multi-language systems option. |
| operating system | Windows 7-10. 32/64 bits |
| Main function |

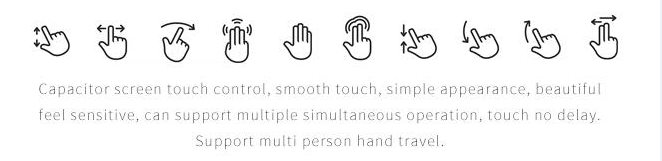

| ● | screen touch |
| ● | Android system |
| ● | encryption keyboard |
| ● | Audio assist |
| ● | WiFi/4G/5G |
Applicable Field:
Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
Product Tags:
|
|
Windows10 Wall Mounted ordering Machine , 17 Inch Self Kiosk Machine Images
|
